SPECIFICATIONS
|

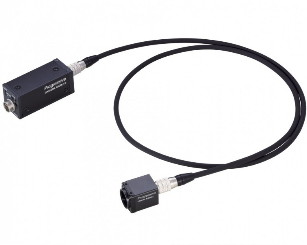

XC-56BB
|
|
Image Device
|
1/3 type Progressive Scan CCD
|
|
Effective Pixel Elements (HxV)
|
659 X 494
|
|
Effective Lines (HxV)
|
647 X 493
|
|
Output Image Size
|
VGA class (647 x 494)
|
|
Cell Size (HxV)
|
7.4 x74.4 μm
|
|
Lens Mount
|
NF mount
|
|
Flange Focal Length
|
12.0 mm
|
|
Sync System
|
Internal/External (automatically switched according to input signal
|
|
External Synchronisation
|
HD/VD (HD/VD level: 2 to 5 Vp-p)
|
|
Input / Output
|
HD/VD (2 to 5 Vp-p 75 Ω)
|
Alowable Frequency
Deviation
|
± 1% (in horizontal synchronous frequency)
|
|
of External Synchronisation
|
1.0 Vp-p, sync negative, 75 Ω, unbalanced
|
|
H Jitter
|
Less than 20 ns
|
|
Scan Lines
|
525-lines/236-lines (Normal mode/Binning mode)
|
|
Video OutputMode
|
Normal: 1 -line sequential output 29,97 fps /
Binning: F2 -line sequential output 59,94 fps
|
|
Video Output
|
1.0 Vp-p, sync. Negative, 75 ! , unbalanced
|
|
Horizontal Frequency
|
15,734 KHz
|
|
Output Signal Frequency
|
29,97 Hz (Normal mode)/59,94 Hz (Binning Mode)
|
|
Horizontal Resolution
|
500 TV lines
|
|
Sensitivity
|
400 lx (F8, y= OFF, FIX GAIN (0dB)
|
|
Minimum Illumination
|
0,5 lx (F1,4 y= OFF, GAIN + 18dB)
|
|
S/N Ratio
|
58 dB
|
|
Gain
|
Fixed/Manually Adjustable
|
|
Gamma
|
1 (fxed)
|
|
White Clip
|
820 mV ± 70mV
|
|
Shutter Mode
|
Normal Shutter, Restart/Restet,
External Trigger shutter mode (Mode1/Mode2)
|
|
Normal Shutter Speed
|
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000 s
|
|
External Trigger Shutter
|
DIP switch setting 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 s,
1/25000, 1/50000, 1/100000 s
Trigger pulse width settings: 1/4 to 1/100000 s
|
|
External Trigger
|
Polarity: +, 2μs to 250 ms ; Input impedence: 10k! or more (H:+2 to 5,0V, L: 0 +0,6V)
|
|
Pin Assignment
|
Correspondence to EIAJ compliant 12PIN connector pin assignment Unvailable (No.8
pin: Trigger input (G), No.9 pin: Trigger input, No. 10 pin: GRD, No. 11 pin: + 10V) Pins
No.10 and 11 are not connected inside the camera
|
|
Power Requirements
|
+12 V DC (range: +10.5 to 15V)
|
|
Power Consumption
|
2.2 W
|
|
Dimensions (WxHxD)
|
CHU: 22 x 22 x 30 mm
|
|
CCU: 29 x 29 x 67 mm
|
|
|
Mass
|
CHU: Approximately 40g
|
|
CCU: Approximately 100g
|
|
|
Operating Temperature
|
-5 to 45°C
|
|
Storage Temperature
|
-30 to 60°C
|
Performance Guarantee
Temperature
|
0 to 40°C
|
|
Operating Humidity
|
20 to 80% (no condensation)
|
|
Storage Humidity
|
20 to 95% (no condensation)
|
|
Vibration Resistance
|
10G (20Hz to 200Hz)
|
|
Shock Resistance
|
70 G
|
|
MTBF
|
73.800 Fit (appox. 8,4 years)
|
|
Regulation
|
UL 6500, FCC Class A Digital Device, CE (EN61326/97 + A1/98)
|
|
Supplied Accessories
|
Lens mount cap (1), Operating Instructions (1),
Dedicated cable (1), Ferrite core (1)
|
