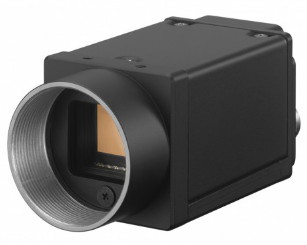

Camera
|
XCG-CG510
|
XCG-CG510C
|
|
Image Sensor
|
2/3-type CMOS Image sensors with a global
shutter function (PREGIUS)
|
2/3-type CMOS Image sensors with a global
shutter function (PREGIUS)
|
Image Sensor
(Number of Effective
Pixels, H x V)
|
global shutter function (PREGIUS)
|
global shutter function (PREGIUS)
|
|
Cell Size (H x V)
|
3.45 μm x 3.45 μm
|
3.45 μm x 3.45 μm
|
|
Output Pixels (H x V)
|
2,448 x 2,048
|
2,448 x 2,048
|
|
Frame Rate
|
23 fps
|
23 fps
|
Minimum Illumination
(50%)
|
0.5 lx (Iris: F1.4,
Gain: +18 dB,
Shutter: 1/23 s)
|
10 lx (Iris: F1.4,
Gain: +18 dB,
Shutter: 1/23 s)
|
|
Sensitivity
|
F8 (400 lx, Gain: 0
dB, Shutter: 1/23 s)
|
F8 (2000 lx, Gain: 0
dB, Shutter: 1/23 s)
|
|
S/N Ratio
|
More than 50 dB (Lens close, Gain: 0 dB, 8 bits)
|
More than 50 dB (Lens close, Gain: 0 dB, 8 bits)
|
|
Gain
|
Auto,Manual : 0 dB to +18 dB
|
Auto,Manual : 0 dB to +18 dB
|
|
Shutter Speed
|
Auto, Manual : 60 s to 1/100,000 s
|
Auto, Manual : 60 s to 1/100,000 s
|
|
White Balance
|
–
|
Manual, One push,
Auto
|
|
Camera Features
|
|
|
|
Readout Modes
|
Normal, Partial scan
|
Normal, Partial scan
|
|
Readout Features
|
Binarization, Built-in test pattern
|
Binarization, Built-in test pattern
|
|
Synchronization
|
Hardware trigger, Software trigger,PTP ( IEEE1588)
|
Hardware trigger, Software trigger,PTP ( IEEE1588)
|
|
Trigger Modes
|
Edge detection, Pulse width detection, Bulk trigger,
Sequential trigger
|
Edge detection, Pulse width detection, Bulk trigger,
Sequential trigger
|
|
User Set
|
16 channels
|
16 channels
|
|
User Memory
|
64 bytes x 16 channels
|
64 bytes x 16 channels
|
|
Other Features
|
Shading correction, Defect correction, Temperature
readout, Noise filter, LUT,
Area gain
|
Shading correction, Defect correction, Temperature
readout, Noise filter, LUT,
Area gain
|
|
Interface
|
|
|
|
Video Data Output
|
Mono8, 10, 12-bit
|
Raw8, 10, 12-
bit, RGB, YUV444,
YUV422
|
|
Digital Interface
|
Gigabit Ethernet (100BASE-TX / 1000BASE-T)
|
Gigabit Ethernet (100BASE-TX / 1000BASE-T)
|
|
Camera Specification
|
GigE Vision® Version 1.2/2.0
|
GigE Vision® Version 1.2/2.0
|
|
Digital Input/Output
|
ISO IN (x1), GP IN/OUT (x2,selectable)
|
ISO IN (x1), GP IN/OUT (x2,selectable)
|
|
General
|
|
|
|
Lens Mount
|
C mount
|
C mount
|
|
Power Requirements
|
DC +12 V (+10.5 V to +15.0 V), IEEE802.3af
(+37 V to +57 V)
|
DC +12 V (+10.5 V to +15.0 V), IEEE802.3af
(+37 V to +57 V)
|
|
Power Consumption
|
DC +12 V : 3.0 W (max.)
|
DC +12 V : 3.0 W (max.)
|
|
IEEE802.3af : 3.7 W (max.)
|
IEEE802.3af : 3.7 W (max.)
|
Operating
Temperature
|
-5°C to +45°C
|
-5°C to +45°C
|
|
23°F to + 113°F
|
23°F to + 113°F
|
Performance
Guarantee
Temperature
|
0°C to 40°C
|
0°C to 40°C
|
|
32°F to 104°F
|
32°F to 104°F
|
|
Storage Temperature
|
-30°C to +60°C
|
-30°C to +60°C
|
|
-22°F to 140°F
|
-22°F to 140°F
|
|
Operating Humidity
|
20% to 80% (no condensation)
|
20% to 80% (no condensation)
|
|
Storage Humidity
|
20% to 95% (no condensation)
|
20% to 95% (no condensation)
|
|
Vibration Resistance
|
10 G (20 Hz to 200 Hz)
|
10 G (20 Hz to 200 Hz)
|
|
Shock Resistance
|
70 G
|
70 G
|
Dimensions
(W × H × D) *1
|
29 x 29 x 42 mm (excluding protrusions)
|
29 x 29 x 42 mm (excluding protrusions)
|
|
1 3/16 x 1 3/16 x 1 11/16 inches
(excluding protrusions)
|
1 3/16 x 1 3/16 x 1 11/16 inches
(excluding protrusions)
|
|
Mass
|
65g
|
65g
|
|
2.3 oz
|
2.3 oz
|
|
Regulations
|
UL60950-1, FCC Class A, CSA C22.2-No.60950-1,
IC Class A Digital Device, CE : EN61326 (Class A),
AS EMC: EN61326-1, VCCI Class A, KCC,
CISPR22/24+IEC61000-3-2/-3
|
UL60950-1, FCC Class A, CSA C22.2-No.60950-1,
IC Class A Digital Device, CE : EN61326 (Class A),
AS EMC: EN61326-1, VCCI Class A, KCC,
CISPR22/24+IEC61000-3-2/-3
|
|
Supplied Accessories
|
Lens mount cap (1)
|
Lens mount cap (1)
|
|
Operating instructions (1)
|
Operating instructions (1)
|
|
*1 The values for dimensions are approximate.
|
