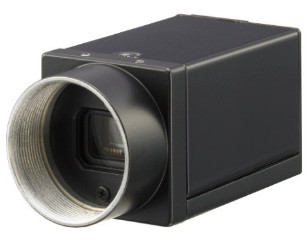

Camera
|
XCG-C32
|
XCG-C32C
|
|
Image Sensor
|
1/2-type progressive scan IT CCD
|
1/2-type progressive scan IT CCD
|
Image Sensor (Number
of Effective Pixels, H x V)
|
659 x 494
|
659 x 494
|
|
Cell Size (H x V)
|
9.9 μm x 9.9 μm
|
9.9 μm x 9.9 μm
|
|
Output Pixels (H x V)
|
640 x 480
|
640 x 480
|
Output Pixels
(H x V, Full Resolution)
|
658 x 494
|
658 x 494
|
|
Colour Filter
|
–
|
RGB colour
mosaic filter
|
|
Frame Rate
|
104 fps (Non-PoE)
|
104 fps (Non-PoE)
|
Minimum Illumination
(50%)
|
1.0 lx (Iris:
F1.4, Gain:
+18 dB,
Shutter:
1/60 s)
|
12 lx (Iris:
F1.4, Gain:
+18 dB,
Shutter:
1/60 s)
|
|
Sensitivity
|
F5.6 (400 lx,
Gain: 0 dB)
|
F5.6 (2000 lx,
Gain: 0 dB)
|
|
S/N Ratio
|
More than 50 dB
|
More than 50 dB
|
|
Gain
|
Auto, Manual: 0 dB to +18 dB
|
Auto, Manual: 0 dB to +18 dB
|
|
Shutter Speed
|
2 s to 1/100,000 s
|
2 s to 1/100,000 s
|
|
White Balance
|
–
|
One push
WB, Manual
|
|
Camera Features
|
|
|
|
Readout Modes
|
Normal,
Binning
(2 x 1, 1 x 2,
2 x 2),
Partial scan
|
Normal,
Partial scan
|
|
Readout Features
|
Binarization, Gamma (variable),
Built-in test pattern, LUT2
|
Binarization, Gamma (variable),
Built-in test pattern, LUT2
|
|
Synchronization
|
Hardware trigger, Software trigger
|
Hardware trigger, Software trigger
|
|
Trigger Modes
|
Edge detection, Pulse width detection,
Bulk trigger, Sequential trigger
|
Edge detection, Pulse width detection,
Bulk trigger, Sequential trigger
|
User Set/Memory
Channel
|
16 channels
|
16 channels
|
|
User Memory
|
32 kbytes + 64 bytes x 16ch
|
32 kbytes + 64 bytes x 16ch
|
|
Image Buffer
|
TBD
|
TBD
|
|
Other Features
|
Temperature readout, Sensitivity control
|
Temperature readout, Sensitivity control
|
|
Interface
|
|
|
|
Video Data Output
|
8, 10, 12-bit,
digital
|
8, 10, 12-bit,
Raw, digital,
RGB Colour,
YUV422,
YUV444
|
|
Digital Interface
|
Gigabit Ethernet (1000BASE-T)
|
Gigabit Ethernet (1000BASE-T)
|
|
Camera Specification
|
GigE Vision® Version 2.0 / 1.2
|
GigE Vision® Version 2.0 / 1.2
|
|
Digital Input/Output
|
ISO IN (x1), ISO OUT (x1), TTL IN/OUT (x2)
|
ISO IN (x1), ISO OUT (x1), TTL IN/OUT (x2)
|
|
General
|
|
|
|
Lens Mount
|
C mount
|
C mount
|
|
Power Requirements
|
DC +12 V (+10.5 V to +15.0 V)
|
DC +12 V (+10.5 V to +15.0 V)
|
|
Power over Ethernet
|
IEEE802.3af
|
IEEE802.3af
|
|
Power Consumption
|
TBD
|
TBD
|
|
Operating Temperature
|
-5°C to +45°C 23°F to 113°F
|
-5°C to +45°C 23°F to 113°F
|
Performance Guarantee
Temperature
|
0°C to 40°C
32°F to 104°F
|
0°C to 40°C
32°F to 104°F
|
|
Storage Temperature
|
-22°F to +140°F -30°C to +60°C
|
-22°F to +140°F -30°C to +60°C
|
|
Operating Humidity
|
20% to 80% (no condensation)
|
20% to 80% (no condensation)
|
|
Storage Humidity
|
20% to 95% (no condensation)
|
20% to 95% (no condensation)
|
|
Vibration Resistance
|
10 G (20 Hz to 200 Hz)
|
10 G (20 Hz to 200 Hz)
|
|
Shock Resistance
|
70 G
|
70 G
|
|
Dimensions (W X H X D)
|
29 x 29 x 42 mm (excluding protrusions)
w1 3/16 x 1 3/16 x 1 5/8 inches
(excluding protrusions)
|
29 x 29 x 42 mm (excluding protrusions)
w1 3/16 x 1 3/16 x 1 5/8 inches
(excluding protrusions)
|
|
Mass
|
TBD
|
TBD
|
|
Regulations
|
UL60950-1, FCC Class A, CSA C22.2-No.1,
IC Class A Digital Device, CE: EN61326 (Class A),
AS EMC: EN61326, VCCI Class A, KCC
|
UL60950-1, FCC Class A, CSA C22.2-No.1,
IC Class A Digital Device, CE: EN61326 (Class A),
AS EMC: EN61326, VCCI Class A, KCC
|
|
Supplied Accessories
|
Lens mount cap (1), Operating Instructions (1)
|
Lens mount cap (1), Operating Instructions (1)
|
