您的位置 : 首页>工业相机>Camera Link XCL>SONY XCL-SG510&XCL-SG510C
SONY XCL-SG510&XCL-SG510C索尼参数协议

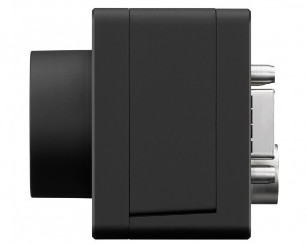

SONY XCL-SG510&XCL-SG510C

2/3英寸全局快门Pregius CMOS图像传感器,510万像素,搭载全局快门CMOS传感器,能够拍摄到高速不变形的图像。154fps的高帧率,宽动态,区域增益及帧积累等索尼独有的功能,能满足高稳定性,高速,高感度的需求,是现有Camera Link接口相机的升级。

淘宝购买

单击进入淘宝官方店购买

论坛提问

单击进入专业论坛注册提问

分享至:

The XCL-SG510 (black & white) and XCL-SG510C (colour) are the latest industrial cameras from Sony to incorporate Sony Pregius GSCMOS sensor technology.


The XCL-SG510 combines the best of Sony technology in a convenient form factor which is optimised for use within both the Industrial Vision and non-manufacturing vision markets.


Drawing upon Sony's market leading Global Shutter CMOS sensor technology the XCL-SG510 combines the highly innovative, high speed IMX250 5.1MP GSCMOS sensor with Sony's rich heritage of complete camera technology and a Camera Link interface, bringing the best combination of performance and quality from a brand you can trust.


The XCL-SG510 incorporates the very latest Pregius high sensitivity technology for maximum visibility in challenging lighting environments.





KEY FEATURES

Unique Image Processing

Utilising both Sony’s GSCMOS Pregius technology and image processing know-how, the XCL-SG510 camera comes equipped with unique image processing capabilities, such as:

Wide Dynamic Range

Frame Accumulation

Area Exposure

Area Gain

Multi ROI

When combined with the use of a high speed Camera Link interface, the XCG-SG510 is perfectly suited for use within ITS, factory automation, food and beverage inspection and pharmaceutical applications.


High Frame Rate Image Transfer

XCL-SG510 camera feature a high readout rate of uncompressed images for smooth and clear results. The XCL-SG510 achieve up to 154 frames per second (fps) (8-bit x 10 tap) frames per second (fps).  Other frame rates are selectable. This enables the camera to capture fast-moving objects without sacrificing image quality.


Shading Correction

With embedded shading correction and Pregius sensor technology the XCL-SG510 camera minimises the uneven image intensity often caused by lighting and/or the lens. The internal hardware processing reduces the need for external image correction that is normally performed via a frame grabber board and PC. This handy function reduces the processing load of the PC, and simplifies the processing task.


Defect Correction

XCL-SG510 camera can automatically minimise defective pixels (e.g.., white and black dots) within the entire imaging area directly inside the camera. This feature helps simplify image processing.


Temperature Readout

The camera comes with an internal temperature sensor. The host device can receive temperature information by issuing a command. This eliminates the need for a separate sensor, and simplifies system configuration.


Memory Channel (User Set)

In addition to factory default settings, up to 16 camera parameters – including brightness, gamma, shutter, gain, and trigger mode – can be preset to suit each

particular scene.


Bulk Trigger Mode & Sequential Trigger Mode

The new XCL-SG510 camera feature advanced Bulk Trigger and Sequential Trigger modes in addition to a free run trigger mode. Each camera supports 16

memory channels that can store up to 16 different camera setups (e.g.., exposure, and gain).

Bulk Trigger mode allows these cameras to capture up to 16 images in rapid succession using a single software or hardware trigger.

Sequential Trigger mode allows each camera to capture a single image using successive setups stored in the memory channels with each software or hardware trigger.


Look-up Table (LUT)

The XCL-SG510 camera supports a look-up table which transforms the input luminance signal into the required digital output. It supports factory presets such as Binarization and user defined LUT.


Industrial Design

The XCG-SG510 adopts the rich heritage in camera design from Sony.  It is designed to resist high shock and vibration whilst maintaining Sony's reputation for high durability and performance."
